Direct H5AD Loading with LoadH5AD
Introduction
srtdisk provides two ways to load h5ad files into R as Seurat objects:
Convert()+LoadH5Seurat()— the traditional two-step approach via an intermediate h5Seurat fileLoadH5AD()— direct loading without intermediate files (new in v0.3.0)
LoadH5AD() is simpler and faster for common use cases:
load a scanpy-processed h5ad file directly into a Seurat object,
preserving expression data, metadata, dimensional reductions, and
neighbor graphs.
library(Seurat)
library(srtdisk)Loading a CellxGene h5ad file
The package bundles a colorectal cancer sample from CellxGene (935 cells x
25,344 genes). Let’s load it directly with LoadH5AD():
h5ad_path <- system.file("testdata", "crc_sample.h5ad", package = "srtdisk")
crc <- LoadH5AD(h5ad_path, verbose = TRUE)
crc
#> An object of class Seurat
#> 25344 features across 935 samples within 1 assay
#> Active assay: RNA (25344 features, 3466 variable features)
#> 2 layers present: counts, data
#> 1 dimensional reduction calculated: umapThe h5ad file is loaded in a single call. Let’s inspect the result:
# Assays and layers
cat("Assays:", paste(Assays(crc), collapse = ", "), "\n")
#> Assays: RNA
cat("Layers:", paste(Layers(crc), collapse = ", "), "\n")
#> Layers: counts, data
# Metadata columns
cat("Metadata columns:", ncol(crc[[]]), "\n")
#> Metadata columns: 50
head(crc[[]][, 1:min(5, ncol(crc[[]]))], 3)
#> orig.ident nCount_RNA nFeature_RNA DC 1
#> 120703423724317_KG182M2 H5AD 47096 7255 -0.028095834
#> 120703436319453_KG182M2 H5AD 6742 2719 0.005544095
#> 120703436877172_KG182M2 H5AD 13992 4172 0.045204181
#> DC 2
#> 120703423724317_KG182M2 -0.006741798
#> 120703436319453_KG182M2 0.020778758
#> 120703436877172_KG182M2 -0.032072473# Dimensional reductions
cat("Reductions:", paste(names(crc@reductions), collapse = ", "), "\n")
#> Reductions: umap
# Neighbor graphs
if (length(crc@graphs) > 0) {
cat("Graphs:", paste(names(crc@graphs), collapse = ", "), "\n")
}Visualize

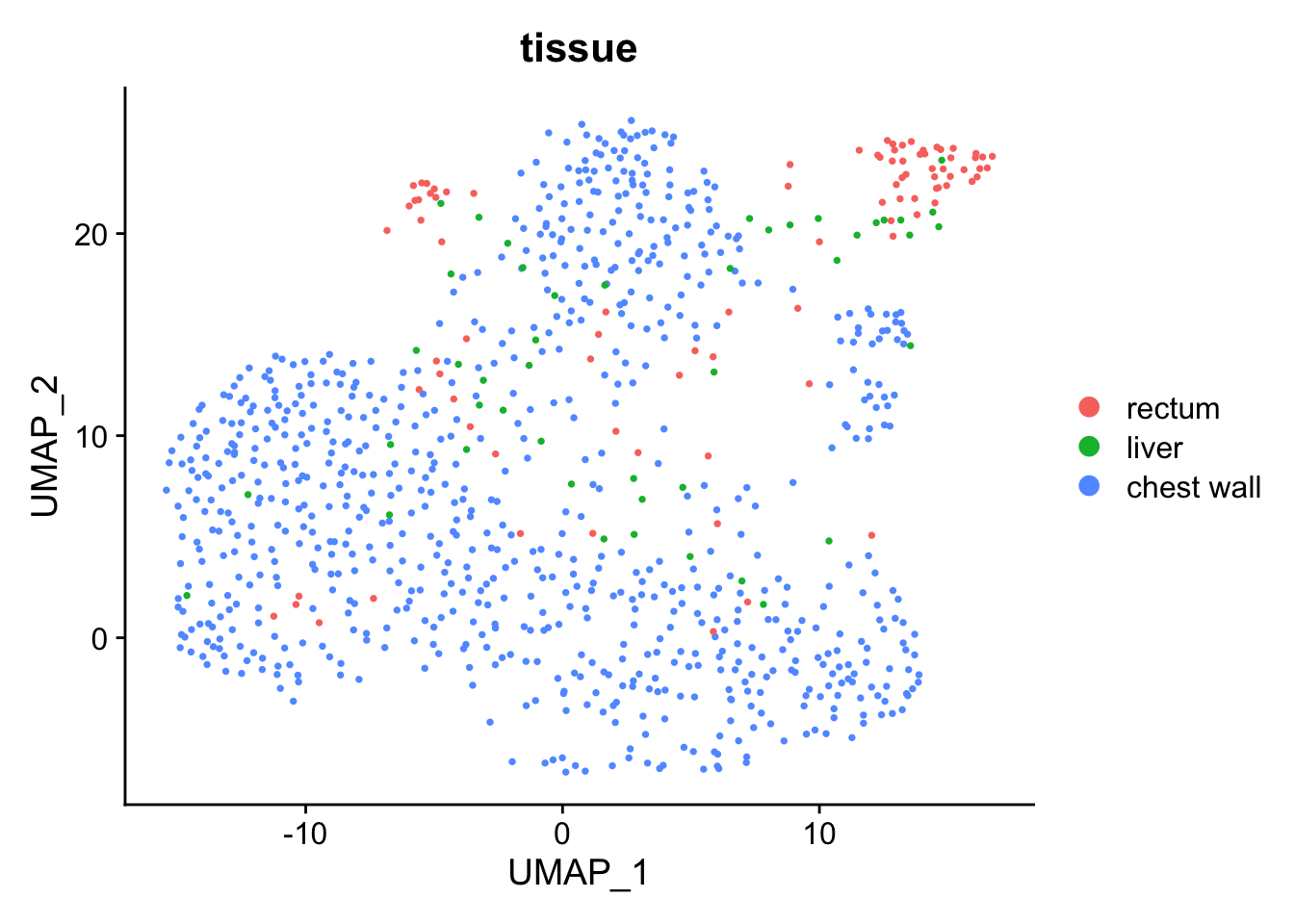

If the h5ad file contains UMAP coordinates (stored in
obsm/X_umap), they are automatically restored:
if ("umap" %in% names(crc@reductions)) {
DimPlot(crc, reduction = "umap", group.by = "tissue", pt.size = 0.5)
}
Comparison: LoadH5AD vs Convert + LoadH5Seurat
The traditional approach requires two steps and creates an intermediate h5Seurat file:
# Traditional approach (two steps)
local_h5ad <- file.path(tempdir(), basename(h5ad_path))
file.copy(h5ad_path, local_h5ad, overwrite = TRUE)
#> [1] TRUE
Convert(local_h5ad, dest = "h5seurat", overwrite = TRUE)
h5seurat_path <- sub("\\.h5ad$", ".h5seurat", local_h5ad)
crc_traditional <- LoadH5Seurat(h5seurat_path)
cat("LoadH5AD cells:", ncol(crc), "\n")
#> LoadH5AD cells: 935
cat("Traditional cells:", ncol(crc_traditional), "\n")
#> Traditional cells: 935
cat("LoadH5AD features:", nrow(crc), "\n")
#> LoadH5AD features: 25344
cat("Traditional features:", nrow(crc_traditional), "\n")
#> Traditional features: 25344Both approaches produce equivalent Seurat objects.
LoadH5AD() is simpler when you don’t need the intermediate
h5Seurat file.
Loading a Seurat-originated h5ad
You can also use LoadH5AD() to round-trip data that was
originally created in Seurat, exported to h5ad via
Convert(), and optionally processed in Python.
library(SeuratData)
if ("pbmc3k.final" %in% rownames(InstalledData())) {
data("pbmc3k.final", package = "pbmc3k.SeuratData")
pbmc <- UpdateSeuratObject(pbmc3k.final)
# Export to h5ad
SaveH5Seurat(pbmc, filename = "pbmc3k_direct.h5Seurat", overwrite = TRUE)
Convert("pbmc3k_direct.h5Seurat", dest = "h5ad", overwrite = TRUE)
# Load back with LoadH5AD
pbmc_loaded <- LoadH5AD("pbmc3k_direct.h5ad")
pbmc_loaded
} else {
message("pbmc3k.final dataset not installed; skipping roundtrip example.")
}if (exists("pbmc", inherits = FALSE) && exists("pbmc_loaded", inherits = FALSE)) {
cat("Original cells:", ncol(pbmc), "\n")
cat("Loaded cells:", ncol(pbmc_loaded), "\n")
# Check reductions
cat("Original reductions:", paste(names(pbmc@reductions), collapse = ", "), "\n")
cat("Loaded reductions:", paste(names(pbmc_loaded@reductions), collapse = ", "), "\n")
}if (exists("pbmc_loaded", inherits = FALSE) && "umap" %in% names(pbmc_loaded@reductions)) {
DimPlot(pbmc_loaded, reduction = "umap", group.by = "seurat_annotations",
label = TRUE, pt.size = 0.5) + NoLegend()
}What LoadH5AD preserves
LoadH5AD() reads the following from h5ad files:
| h5ad Location | Seurat Destination | Description |
|---|---|---|
X |
Default assay data layer |
Expression matrix (sparse or dense) |
raw/X |
counts layer |
Raw counts if present |
layers/* |
Additional layers | Named layers mapped to Seurat slots |
obs |
meta.data |
Cell metadata (categorical preserved as factors) |
var |
Feature metadata | Gene-level annotations |
var['highly_variable'] |
VariableFeatures() |
Variable feature selection |
obsm/X_umap |
reductions$umap |
UMAP coordinates |
obsm/X_pca |
reductions$pca |
PCA embeddings |
obsm/X_tsne |
reductions$tsne |
tSNE coordinates |
obsm/spatial |
Spatial coordinates | Via ConvertH5ADSpatialToSeurat() |
obsp/connectivities |
graphs$RNA_snn |
SNN graph |
obsp/distances |
graphs$RNA_nn |
Distance graph |
uns/* |
misc |
Unstructured annotations |
When to use LoadH5AD vs Convert
| Scenario | Recommended |
|---|---|
| Quick exploration of an h5ad file | LoadH5AD() |
| Round-trip editing (load, modify, re-export) | Convert() + LoadH5Seurat() |
| Need h5Seurat for other tools | Convert() |
| Loading scanpy-processed data for Seurat analysis | LoadH5AD() |
| Working with spatial h5ad from CellxGene | LoadH5AD() |
