In-Memory vs On-Disk Conversion

Source: vignettes/conversion-modes.Rmd
conversion-modes.Rmd

scConvert provides three conversion modes with different speed and memory trade-offs. This vignette explains when to use each, and compares Seurat serialization formats for disk space.

Three conversion modes

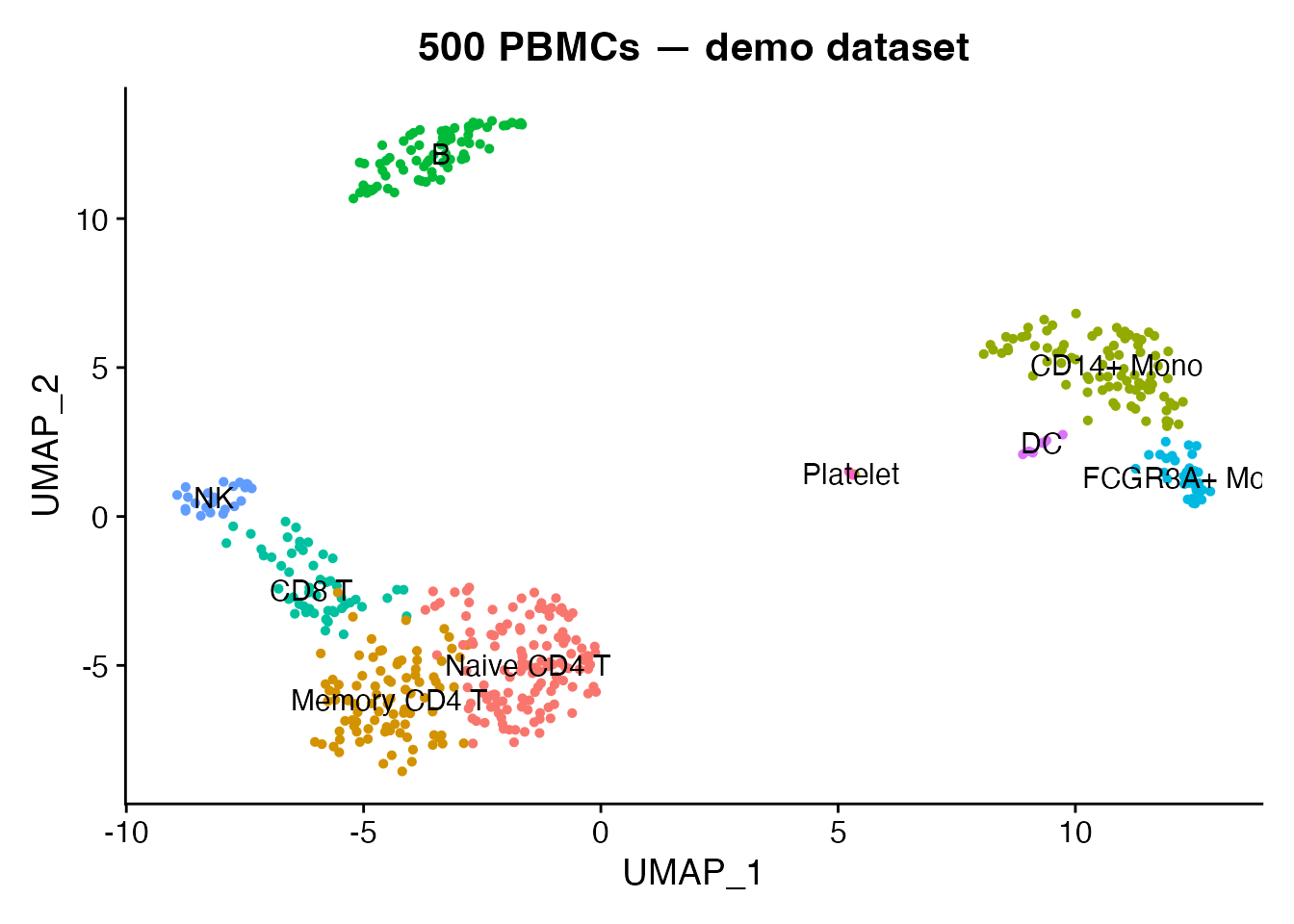

obj <- readRDS(system.file("extdata", "pbmc_demo.rds", package = "scConvert"))
DimPlot(obj, group.by = "seurat_annotations", label = TRUE, pt.size = 1) +
  ggtitle("500 PBMCs — demo dataset") + NoLegend()

1. In-memory (hub path)

The default mode loads data into a Seurat object, then saves to the target format. This supports all format pairs but requires the full dataset in RAM.

# Seurat object -> h5ad (in-memory)
h5ad_path <- file.path(tempdir(), "pbmc_hub.h5ad")
t1 <- system.time(writeH5AD(obj, h5ad_path, verbose = FALSE))
cat("In-memory write:", round(t1["elapsed"], 2), "s\n")
#> In-memory write: 1.51 s

Use in-memory conversion when you need to manipulate the data in R, or when the source/destination formats don’t share the same on-disk layout.

2. On-disk streaming (R)

For Zarr conversions, scConvert can copy data field-by-field between files without ever constructing a Seurat object. This keeps memory usage constant regardless of dataset size.

# h5ad -> zarr (streaming, no Seurat object in memory)
zarr_path <- file.path(tempdir(), "pbmc_stream.zarr")
t2 <- system.time(H5ADToZarr(h5ad_path, zarr_path, stream = TRUE, verbose = FALSE))
cat("Streaming h5ad -> zarr:", round(t2["elapsed"], 2), "s\n")
#> Streaming h5ad -> zarr: 0.33 s

Available streaming converters:

Function Direction
H5ADToZarr() h5ad → zarr
ZarrToH5AD() zarr → h5ad
H5SeuratToZarr() h5Seurat → zarr
ZarrToH5Seurat() zarr → h5Seurat

All accept stream = TRUE (the default) to bypass the Seurat intermediate.

3. C binary (on-disk, fastest)

For HDF5-based format pairs (h5ad, h5Seurat, h5mu, Loom), the compiled C binary copies datasets directly at the HDF5 level. It uses constant memory and is typically 10–50x faster than the R path.

h5s_path <- file.path(tempdir(), "pbmc_cli.h5seurat")
writeH5Seurat(obj, h5s_path, overwrite = TRUE, verbose = FALSE)

h5ad_cli <- file.path(tempdir(), "pbmc_cli.h5ad")
t3 <- system.time(scConvert_cli(h5s_path, h5ad_cli, verbose = FALSE))
cat("C binary h5seurat -> h5ad:", round(t3["elapsed"], 2), "s\n")
#> C binary h5seurat -> h5ad: 0.02 s

Build the binary with cd src && make (requires HDF5 headers).

Performance at scale

On synthetic sparse h5ad files (20K genes, 5% density), median of 3 runs on Apple M4 Max:

Operation 100K cells 500K cells
C binary (h5ad ↔︎ h5seurat) 0.19 s 0.63 s
Streaming (h5ad → zarr) ~1 s ~5 s
In-memory read h5ad 2.56 s 12.68 s
In-memory write h5ad (gzip=0) 0.61 s 3.29 s

The C binary stays under 1 second even at 500K cells because it never decompresses the expression matrix — it copies HDF5 chunks directly.

Seurat serialization formats

A Seurat object can be saved in several R-native formats. All preserve the full object structure (assays, reductions, graphs, metadata, images).

rds_path <- file.path(tempdir(), "pbmc.rds")
h5s_path2 <- file.path(tempdir(), "pbmc.h5seurat")

saveRDS(obj, rds_path)
writeH5Seurat(obj, h5s_path2, overwrite = TRUE, verbose = FALSE)

sizes <- data.frame(
  Format = character(), Size_KB = numeric(), stringsAsFactors = FALSE
)
sizes <- rbind(sizes, data.frame(Format = "RDS (.rds)", Size_KB = file.size(rds_path) / 1024))
sizes <- rbind(sizes, data.frame(Format = "h5Seurat (.h5seurat)", Size_KB = file.size(h5s_path2) / 1024))

if (requireNamespace("qs", quietly = TRUE)) {
  qs_path <- file.path(tempdir(), "pbmc.qs")
  qs::qsave(obj, qs_path)
  sizes <- rbind(sizes, data.frame(Format = "qs (.qs)", Size_KB = file.size(qs_path) / 1024))
}

if (requireNamespace("qs2", quietly = TRUE)) {
  qs2_path <- file.path(tempdir(), "pbmc.qs2")
  qs2::qs_save(obj, qs2_path)
  sizes <- rbind(sizes, data.frame(Format = "qs2 (.qs2)", Size_KB = file.size(qs2_path) / 1024))
}

# Also save as RData
rdata_path <- file.path(tempdir(), "pbmc.RData")
save(obj, file = rdata_path)
sizes <- rbind(sizes, data.frame(Format = "RData (.RData)", Size_KB = file.size(rdata_path) / 1024))

sizes$Size_MB <- round(sizes$Size_KB / 1024, 2)
sizes$Size_KB <- round(sizes$Size_KB, 0)
knitr::kable(sizes[, c("Format", "Size_MB")], col.names = c("Format", "Size (MB)"))
Format Size (MB)
RDS (.rds) 1.57
h5Seurat (.h5seurat) 2.16
qs (.qs) 1.64
qs2 (.qs2) 1.52
RData (.RData) 1.57

Format comparison

Format Compression Random access Language
RDS gzip No (full load) R only
RData gzip No (full load) R only
qs lz4 / zstd No (full load) R only
qs2 zstd No (full load) R only
h5Seurat gzip (HDF5) Yes (selective load) R, C

Key differences:

  • qs / qs2 are the fastest R serialization formats (2–5x faster than saveRDS), with similar or better compression. Use them for local caching.
  • h5Seurat is the only format that supports selective loading — read just one assay or one reduction without loading the entire object.
  • RDS / RData are universally available but slower for large objects.

Exchange formats

For sharing data with Python or other tools, use cross-language formats:

h5ad_path2 <- file.path(tempdir(), "pbmc_exchange.h5ad")
writeH5AD(obj, h5ad_path2, verbose = FALSE)

loom_path <- file.path(tempdir(), "pbmc_exchange.loom")
writeLoom(obj, loom_path, verbose = FALSE)
#> Adding col attribute CellID
#> Adding col attribute orig.ident
#> Adding col attribute nCount_RNA
#> Adding col attribute nFeature_RNA
#> Adding col attribute seurat_annotations
#> Adding col attribute percent.mt
#> Adding col attribute RNA_snn_res.0.5
#> Adding col attribute seurat_clusters
#> Adding row attribute Gene
#> Adding row attribute vst.mean
#> Adding row attribute vst.variance
#> Adding row attribute vst.variance.expected
#> Adding row attribute vst.variance.standardized
#> Adding row attribute vst.variable

zarr_path2 <- file.path(tempdir(), "pbmc_exchange.zarr")
writeZarr(obj, zarr_path2, verbose = FALSE)

exchange <- data.frame(
  Format = c("h5ad (AnnData)", "Loom", "Zarr"),
  Size_MB = round(c(
    file.size(h5ad_path2),
    file.size(loom_path),
    sum(file.info(list.files(zarr_path2, recursive = TRUE, full.names = TRUE))$size)
  ) / 1024^2, 2),
  Ecosystem = c("scanpy, CELLxGENE", "loompy, velocyto", "cloud / AnnData")
)
knitr::kable(exchange)
Format Size_MB Ecosystem
h5ad (AnnData) 0.93 scanpy, CELLxGENE
Loom 2.17 loompy, velocyto
Zarr 0.64 cloud / AnnData

When to use what

Goal Recommended
Fast local save/load in R qs2::qs_save() / qs2::qs_read()
Selective loading (big data) writeH5Seurat() / readH5Seurat()
Share with Python writeH5AD() or C binary
Batch convert many files C binary (scconvert)
Cloud storage writeZarr()
Convert without loading scConvert_cli() or streaming converters

Clean up
