Loom Format: HDF5 Interop with loompy and scVelo

Overview

Loom is an HDF5-based format developed by the Linnarsson lab and used natively by loompy, RNA velocity tools (scVelo, velocyto), and several single-cell atlases. It stores the expression matrix at /matrix, cell metadata in /col_attrs, gene metadata in /row_attrs, and additional layers (spliced/unspliced counts, normalized data) in /layers.

scConvert provides readLoom() and writeLoom() for full Seurat <-> Loom conversion without a Python dependency.

This article demonstrates the conversion on PBMC 3k (2,638 cells, 13,714 genes) and validates the written file with loompy and scanpy.

---

1 Load h5ad and write Loom

We first load the PBMC 3k h5ad into Seurat, then export to Loom.

input_h5ad <- "../pbmc3k.h5ad"
pbmc_seurat <- readH5AD(input_h5ad, verbose = FALSE)
cat(sprintf("Loaded: %d cells x %d genes\n", ncol(pbmc_seurat), nrow(pbmc_seurat)))
#> Loaded: 2638 cells x 13714 genes

loom_path <- file.path(tempdir(), "pbmc3k.loom")

t0 <- proc.time()
writeLoom(pbmc_seurat, filename = loom_path, overwrite = TRUE, verbose = FALSE)
elapsed <- (proc.time() - t0)[["elapsed"]]

cat(sprintf("Wrote Loom: %.2fs | %.1f MB\n", elapsed, file.size(loom_path) / 1e6))
#> Wrote Loom: 2.43s | 22.3 MB

---

2 Read Loom back into Seurat

pbmc_loom <- readLoom(loom_path, verbose = FALSE)
cat(sprintf("Loaded: %d cells x %d genes\n", ncol(pbmc_loom), nrow(pbmc_loom)))
#> Loaded: 2638 cells x 13714 genes

pbmc_loom
#> An object of class Seurat
#> 13714 features across 2638 samples within 1 assay
#> Active assay: RNA (13714 features, 0 variable features)
#>  2 layers present: counts, data
#>  2 dimensional reductions calculated: pca, umap
head(pbmc_loom[[]], 4)

set.seed(42L)
pbmc_loom <- NormalizeData(pbmc_loom, verbose = FALSE)
pbmc_loom <- FindVariableFeatures(pbmc_loom, nfeatures = 2000L, verbose = FALSE)
pbmc_loom <- ScaleData(pbmc_loom, verbose = FALSE)
pbmc_loom <- RunPCA(pbmc_loom, npcs = 30L, verbose = FALSE)
pbmc_loom <- RunUMAP(pbmc_loom, dims = 1:20, verbose = FALSE)

DimPlot(
  pbmc_loom,
  reduction  = "umap",
  group.by   = "seurat_annotations",
  label      = TRUE,
  label.size = 3.5,
  repel      = TRUE
) +
  ggtitle("PBMC 3k: cell-type annotations (from Loom)") +
  theme(plot.title = element_text(hjust = 0.5))

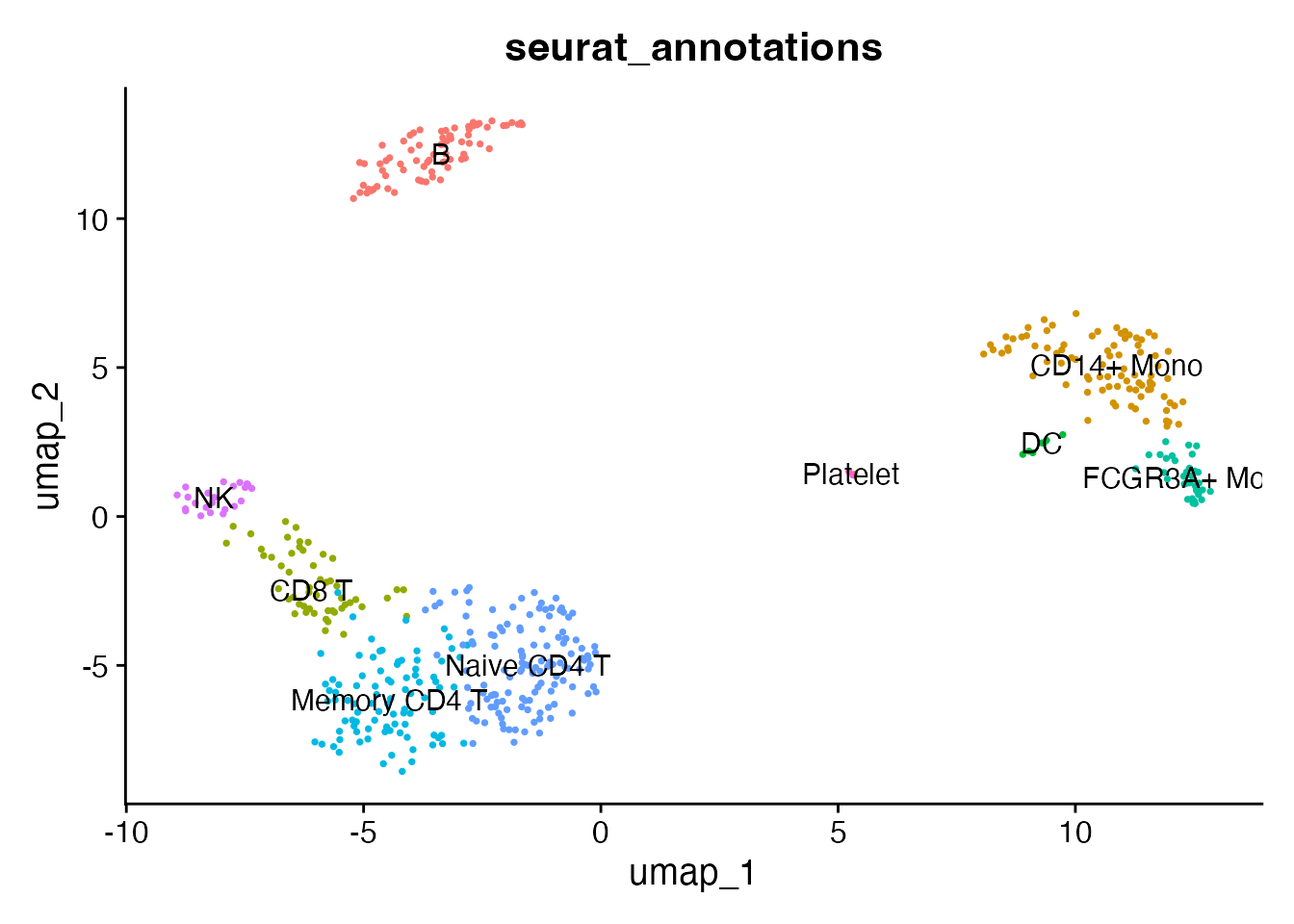

PBMC 3k UMAP coloured by cell-type annotation after Loom round-trip.

---

3 What is preserved

Component	Preserved	Loom path
Expression matrix	Yes	/matrix
Raw counts	Yes	/layers/counts
Cell metadata	Yes	/col_attrs
Gene metadata	Yes	/row_attrs
PCA / UMAP embeddings	Yes	/col_attrs/PC_1..n, UMAP_1..n
Seurat cluster labels	Yes	/col_attrs/seurat_clusters
Neighbor graphs	No	Recompute with FindNeighbors()
misc / uns	No	Not part of the Loom spec

---

4 Python validation with loompy

library(reticulate)
Sys.setenv(NUMBA_THREADING_LAYER = "tbb", OMP_NUM_THREADS = "1")
use_condaenv("scverse")

import loompy
import matplotlib
matplotlib.use('Agg')
import matplotlib.pyplot as plt

with loompy.connect(r.loom_path, mode="r") as ds:
    print(f"Shape: {ds.shape[0]} genes x {ds.shape[1]} cells")
    print(f"Column attributes (cell metadata): {list(ds.ca.keys())[:8]}")
    print(f"Row attributes (gene metadata): {list(ds.ra.keys())[:5]}")
    print(f"Layers: {list(ds.layers.keys())}")
#> Shape: 13714 genes x 2638 cells
#> Column attributes (cell metadata): ['CellID', 'RNA_snn_res.0.5', 'nCount_RNA', 'nFeature_RNA', 'orig.ident', 'percent.mt', 'seurat_annotations', 'seurat_clusters']
#> Row attributes (gene metadata): ['Gene']
#> Layers: ['']

---

5 Read Loom with scanpy

scanpy can load a Loom file directly and treat it as an AnnData object.

import scanpy as sc
adata = sc.read_loom(r.loom_path, sparse=True, cleanup=False)
print(adata)
#> AnnData object with n_obs × n_vars = 2638 × 13714
#>     obs: 'RNA_snn_res.0.5', 'nCount_RNA', 'nFeature_RNA', 'orig.ident', 'percent.mt', 'seurat_annotations', 'seurat_clusters'
print(f"obs columns: {list(adata.obs.columns)[:6]}")
#> obs columns: ['RNA_snn_res.0.5', 'nCount_RNA', 'nFeature_RNA', 'orig.ident', 'percent.mt', 'seurat_annotations']

---

6 scVelo use case

Loom is the primary input format for RNA velocity analysis with scVelo and velocyto. scVelo expects two layers: spliced and unspliced, which are produced by velocyto or STARsolo during alignment.

A typical workflow:

1. Run STARsolo or velocyto on the BAM files to produce a .loom with spliced/unspliced counts.
2. Load that loom into R with readLoom() for QC and metadata annotation in Seurat.
3. Export the annotated object back with writeLoom(), which preserves the cluster labels and embeddings in /col_attrs.
4. Pass the annotated loom to scVelo in Python.

scConvert writes expression counts to /layers/counts. Users need to merge the spliced/unspliced layers from the velocyto output separately before running scVelo.

import loompy
with loompy.connect(r.loom_path, mode="r") as ds:
    layers = list(ds.layers.keys())
    print(f"Layers in scConvert output: {layers}")
    print("scVelo additionally requires: ['spliced', 'unspliced']")
    print("Merge these from the velocyto loom before calling scvelo.pp.filter_and_normalize()")
#> Layers in scConvert output: ['']
#> scVelo additionally requires: ['spliced', 'unspliced']
#> Merge these from the velocyto loom before calling scvelo.pp.filter_and_normalize()

---

7 Cleanup

unlink(loom_path)
