Working with h5Seurat Files

The h5Seurat format is an HDF5-based file format designed specifically for Seurat objects. It stores all assays, reductions, graphs, and metadata in a single file and supports selective loading so you can read only the components you need.

Read an h5Seurat file

scConvert ships a 500-cell PBMC dataset in h5Seurat format. readH5Seurat() loads it directly into a fully functional Seurat object.

h5seurat_file <- system.file("extdata", "pbmc_demo.h5seurat", package = "scConvert")
pbmc <- readH5Seurat(h5seurat_file)
pbmc
#> An object of class Seurat
#> 2000 features across 500 samples within 1 assay
#> Active assay: RNA (2000 features, 2000 variable features)
#>  2 layers present: counts, data
#>  2 dimensional reductions calculated: pca, umap

The loaded object contains all nine annotated cell types with PCA, UMAP, and neighbor graphs:

DimPlot(pbmc, reduction = "umap", group.by = "seurat_annotations",
        label = TRUE, pt.size = 0.5) + NoLegend()

Expression data is fully available. LYZ is a monocyte marker:

FeaturePlot(pbmc, features = "LYZ", pt.size = 0.5)

Write a Seurat object to h5Seurat

writeH5Seurat() saves any Seurat object to h5Seurat format, preserving all assays, dimensional reductions, graphs, and cell metadata.

pbmc_seurat <- readRDS(system.file("extdata", "pbmc_demo.rds", package = "scConvert"))
h5seurat_path <- tempfile(fileext = ".h5Seurat")
writeH5Seurat(pbmc_seurat, filename = h5seurat_path, overwrite = TRUE)
cat("File size:", round(file.size(h5seurat_path) / 1e6, 1), "MB\n")
#> File size: 2.3 MB

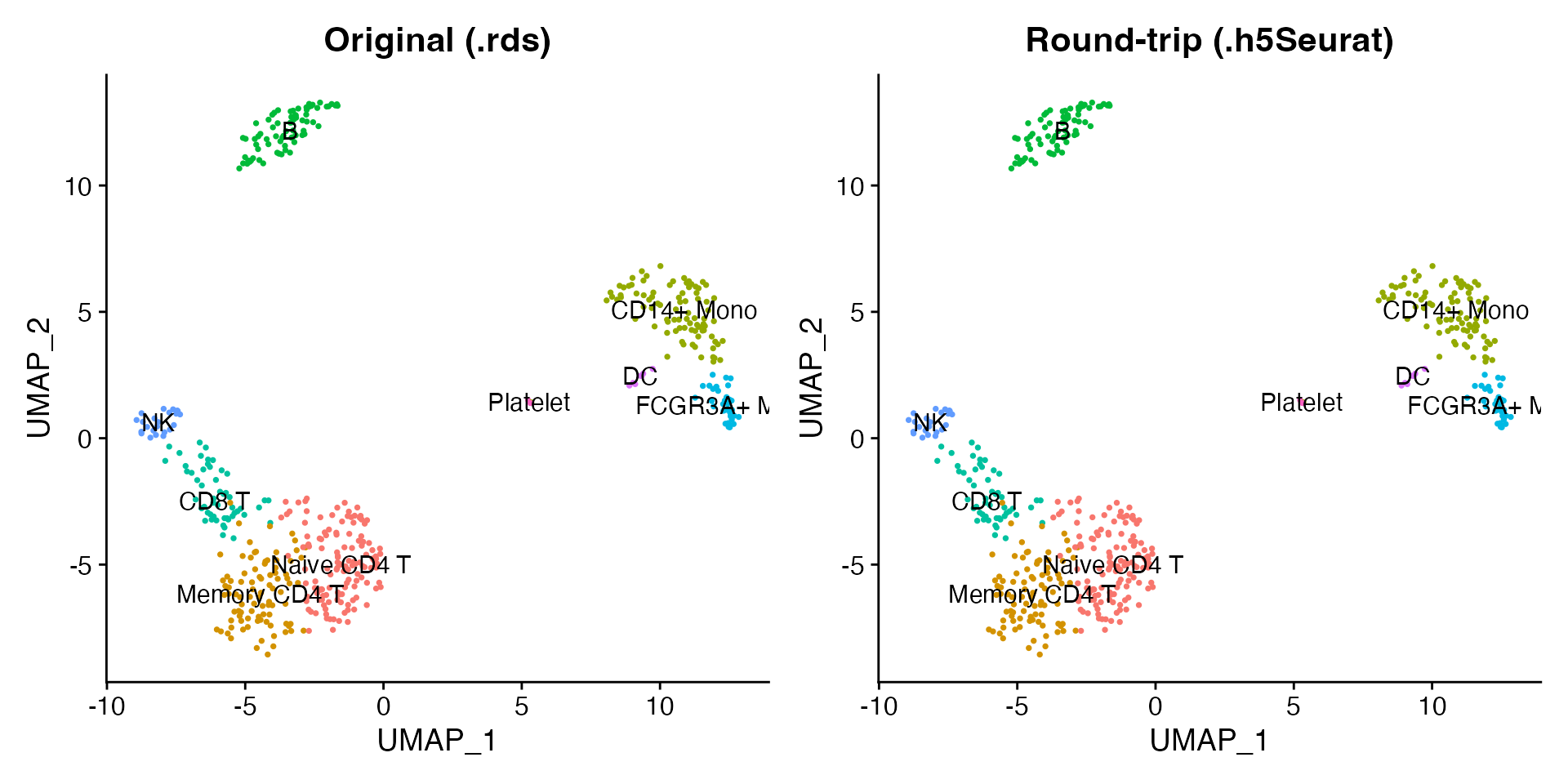

Verify the round-trip

Read the written file back and confirm that the UMAP coordinates, cluster labels, and expression values are identical to the original.

pbmc_rt <- readH5Seurat(h5seurat_path)

library(patchwork)
p1 <- DimPlot(pbmc_seurat, reduction = "umap", group.by = "seurat_annotations",
              label = TRUE, pt.size = 0.5) + NoLegend() + ggtitle("Original (.rds)")
p2 <- DimPlot(pbmc_rt, reduction = "umap", group.by = "seurat_annotations",
              label = TRUE, pt.size = 0.5) + NoLegend() + ggtitle("Round-trip (.h5Seurat)")
p1 + p2

Selective loading

For large datasets, you can load only what you need. This is useful when you have a multi-gigabyte h5Seurat file and only want to make a quick UMAP plot.

Load only the RNA assay with UMAP, skipping PCA and all graphs:

pbmc_light <- readH5Seurat(h5seurat_file, assays = "RNA",
                           reductions = "umap", graphs = FALSE)
pbmc_light
#> An object of class Seurat
#> 2000 features across 500 samples within 1 assay
#> Active assay: RNA (2000 features, 2000 variable features)
#>  2 layers present: counts, data
#>  1 dimensional reduction calculated: umap

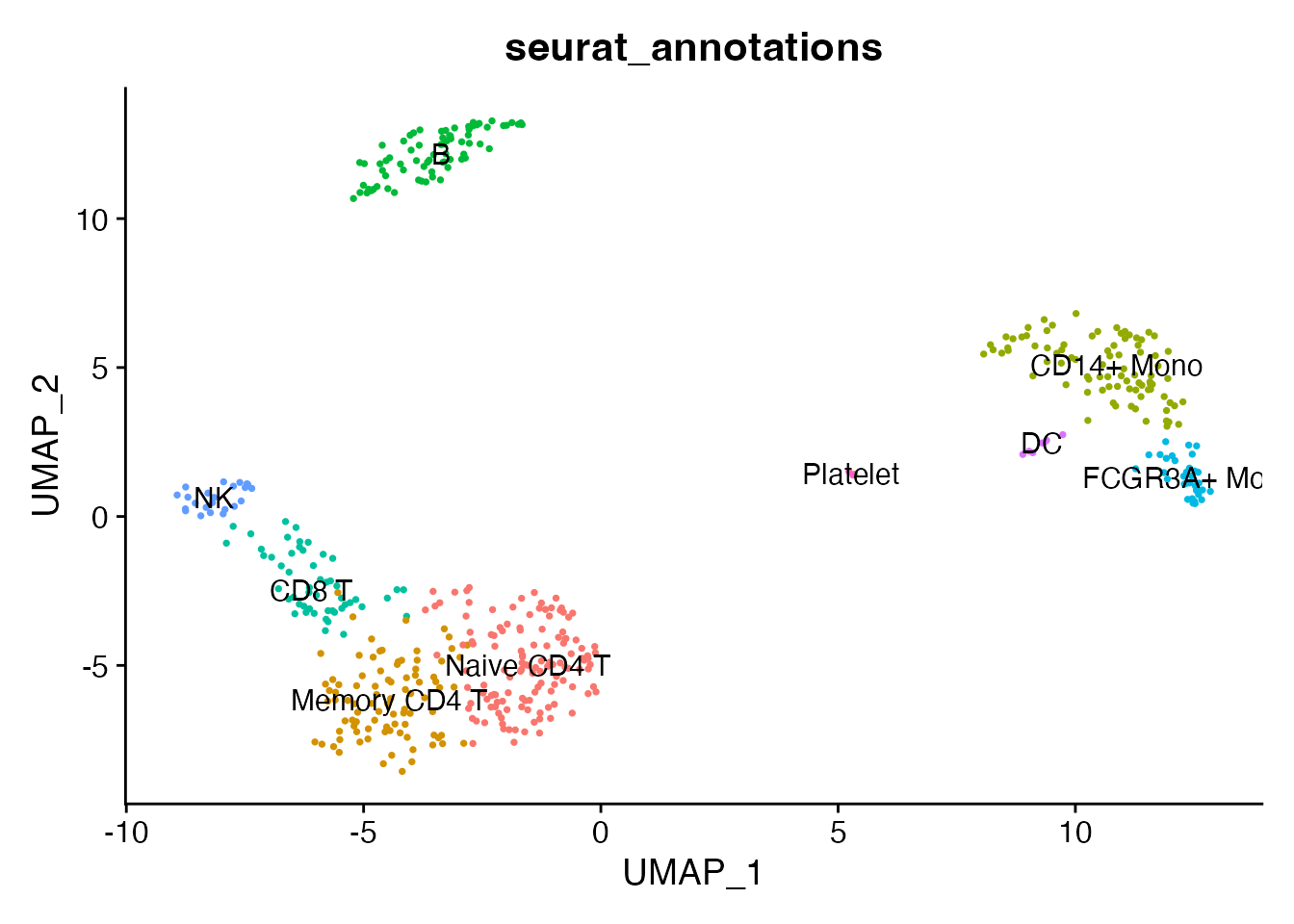

The light object still supports visualization since UMAP coordinates are present:

DimPlot(pbmc_light, reduction = "umap", group.by = "seurat_annotations",
        label = TRUE, pt.size = 0.5) + NoLegend()

Query file contents with scConnect()

Before loading any data, you can inspect what is stored in an h5Seurat file using scConnect(). This opens a lightweight connection and .index() summarizes the contents – which assays, reductions, graphs, and images are available.

hfile <- scConnect(h5seurat_file)
hfile$index()
#> Data for assay RNA★ (default assay)
#>    counts      data    scale.data
#>      ✔          ✔          ✖
#> Dimensional reductions:
#>         Embeddings  Loadings  Projected  JackStraw
#>  pca:       ✔          ✔          ✖          ✖
#>  umap:      ✔          ✖          ✖          ✖
hfile$close_all()

This is especially useful for large files where you want to decide what to load before committing memory.

Per-cluster expression

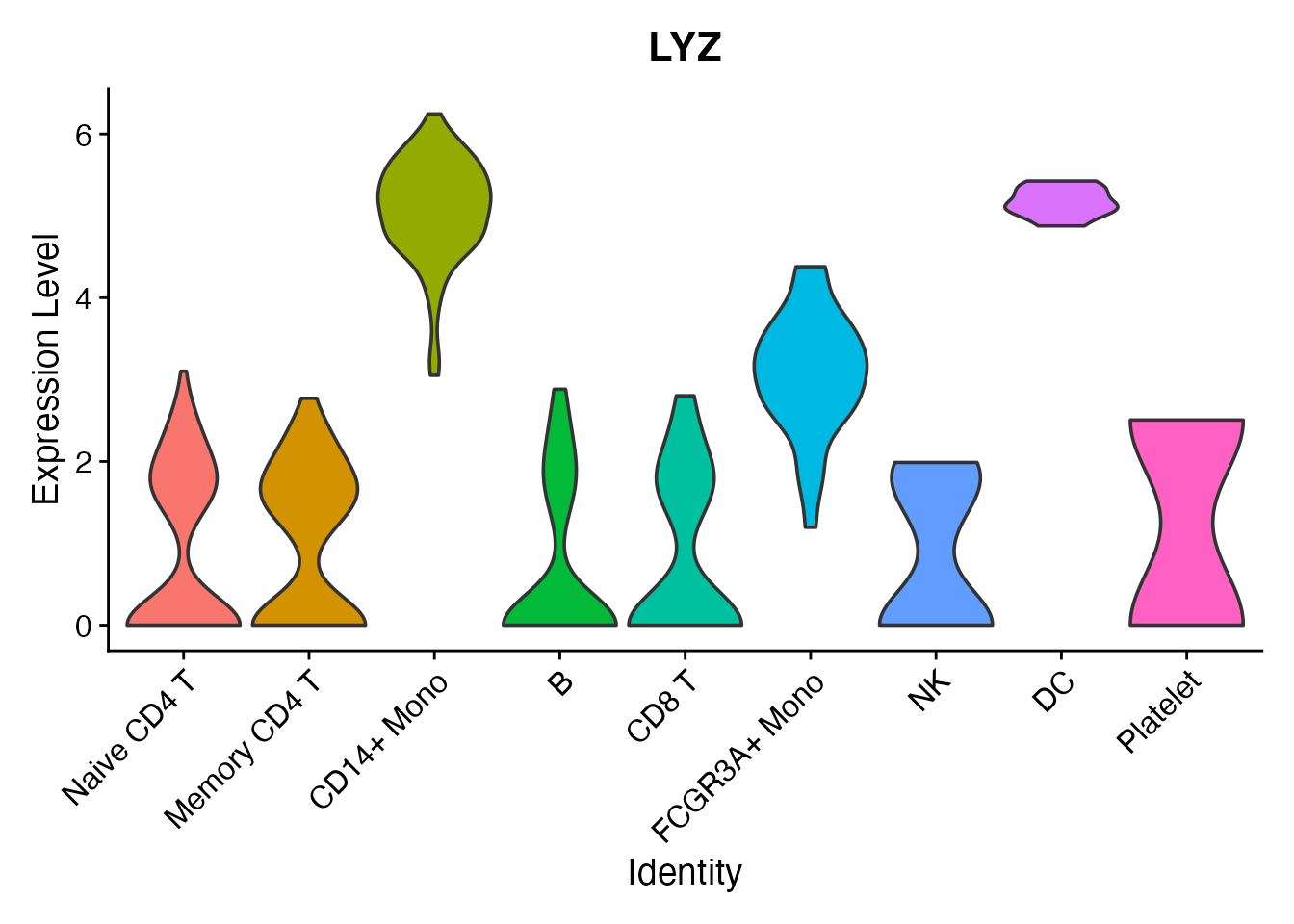

A violin plot shows the LYZ expression distribution across all nine cell types:

VlnPlot(pbmc, features = "LYZ", group.by = "seurat_annotations", pt.size = 0) +
  NoLegend()

Clean up

unlink(h5seurat_path)
